• 1” soft-dome tweeter on a small wave-guide for increased HiFi quality output
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Dedicated protection in combination with SDP modules (with ALC)
  • Omnimount™ mounting points, bracket (option)
  • Passive filtering for easy operation and economical powering






Description



Dimensional Drawing »

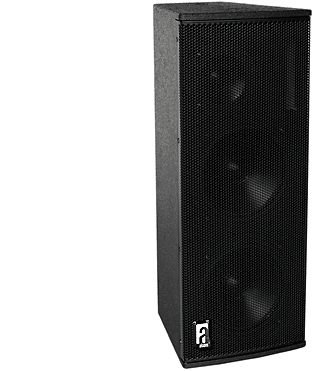

The TS7 is a 2-way ultra-compact versatile loudspeaker, for both permanent and limited portable applications. Featuring a 1” soft-dome tweeter with double 6.5” high quality woofers, the TS7 delivers exceptional performance from a very compact and efficient package. The system includes dedicated filtering and system equalizing.

The SIS pre-wiring ensures complete cable/connector compensation between the TS7 and ALC. The enclosure design provides for low profile mounting (ceiling, wall). Typical applications for the TS7 include nearfield main system for small theatre, A/V, PA or fill/delay speaker in larger systems. In applications where extended bass response is required, the TS7 can be combined with a bass or sub bass system.

For full system performance, TS7 can be used in combination with an ALC2 (or ALC4) amplifier/ controller. Driven by the ALC, the TS7 delivers maximum sound quality and output power with inaudible (power and excursion) protection (SDP circuit).

Technical Specifications

Frequency Response
+/- 3 dB 66 Hz – 20.000 Hz
+/- 10 dB 47 Hz –
Sensitivity (SPL 1W/M) 92 dB
Nominal Impedance 8 ohms
Maximum RMS power 200 W
Maximum peak power 800 W
SPL program/peak 115/121 dB
Dispersion H x V 90° x 40°
Polarity positive voltage on terminal 1+ of
Speakon gives forward cone motion

Physical Specifications

System 2-way, full range
Filtering passive
Drivers LF 2 x AMB65 6.5″, vented
Driver HF 1 x AST1″ soft dome tweeter
Cross-over frequency 3000 Hz
Connectors 2 x Speakon NL4 input / link
Physical dimensions mm
Height 496
Width 200.5
Depth 225.9
Weight (approx.) 6.6kg
Warranty 6 years limited
