The V series is the group of versatile compact systems. Incredible power output combined with true ribbon quality sound reproduction, packed in a multi-application housing.

VR8 Features
  • RBN401 pro-ribbon HF driver with 8” woofer
  • 74Hz. – 20.000Hz. (+/- 3dB)
  • SPL program/peak (nom.) 120dB / 125dB
  • Signal Integrity Sensing™ pre-wired
  • Revolvable 90°x40°/40°x90° HempHorn™ wave-guide
  • Asymmetric enclosure for multi-angle mounting
  • Durotect™ scratch-resistant coating
Read more »

VR12
VR12i
VR12M
Features
  • RBN601 pro-ribbon HF driver with 12” woofer
  • 60Hz. – 20.000Hz. (+/- 3dB)
  • SPL program/peak (nom.) 127dB / 132dB
  • Signal Integrity Sensing™ pre-wired
  • Revolvable 90°x40°/40°x90° HempHorn™ wave-guide
  • Asymmetric enclosure for multi-angle mounting
  • Durotect™ scratch-resistant coating
  • All NeoDymium drivers

VR12i without handles and stand mount adapter
VR12M with mirrored baffle, for floor monitor use

Read more »

VR12/60
VR12/60i
VR12/60M
Features
  • RBN601 pro-ribbon HF driver with 12” woofer
  • 60Hz. – 20.000Hz. (+/- 3dB)
  • SPL program/peak (nom.) 128dB / 133dB
  • Signal Integrity Sensing™ pre-wired
  • Non-revolvable 60°x30° HempHorn™ wave-guide
  • Asymmetric enclosure for multi-angle mounting
  • Durotect™ scratch-resistant coating
  • All NeoDymium drivers

VR12/60i without handles and stand mount adapter
VR12/60M with mirrored baffle, for floor monitor use

Read more »

  • RBN401 pro-ribbon HF driver with exceptional intelligibility and SPL output
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Extended headroom/SPL and protection in combination with SDP modules (with ALC)
  • Asymmetric enclosure provides maximum mounting flexibility
  • Stand mount adapter, Omnimount™ and fixed flying points, bracket (option)
  • Passive filtering for easy operation and economical powering
  • Durotect™ scratch-resistant coating






Description

VR8 The VR8 is a 2-way ultra-compact multi-purpose loudspeaker, for both portable and permanent applications. Featuring the RBN401 pro-ribbon driver, the VR8 combines a remarkable clarity and intelligibility, with a high SPL.

The RBN401 is mounted on a “revolvable” 90°x40° wave-guide and projects with “Real-90” horizontal dispersion up to 20.000Hz.

The system includes dedicated filtering, but system equalizing is done remotely (electronically) fully utilizing the individual speaker components’ power capacity. This results in increased headroom SPL.

The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between the VR8 and ALC. The asymmetrical enclosure design provides for very flexible mounting (ceiling, wall) and usage. Typical applications for the VR8 include nearfield main system for theatre, A/V, PA or fill/delay speaker in larger systems, as well as stage monitoring.

In applications where extended bass response is required, the VR8 can be combined with a pressurebass or deep-sub system.

For full system performance, the VR8 needs to be driven by an ALC controller-amplifier. Driven by the ALC, the VR8 delivers maximum sound quality with increased headroom, under dedicated equalisation and inaudible (power and excursion) protection (SDP circuit).

Dimensional Drawing »

Technical Specifications

Frequency Response
+/- 3 dB 74 Hz – 20.000 Hz
+/- 10 dB 58 Hz –
Sensitivity (SPL 1W/M) 94 dB
Sensitivity (nominal) 96 dB (200Hz. – 10kHz.)
Nominal Impedance 8 ohms
Maximum RMS power 280 W
Maximum peak power 800 W
SPL program/peak (nom.) 120dB / 125dB
Dispersion H x V 90° x 40° (nom.)
or 40° x 90° (nom.)

Physical Specifications

System 2-way, full range
Filtering passive
Drivers LF 1 x AMB8 8″, vented
Driver HF 1 x RBN401 4″ pro ribbon driver
Cross-over frequency 1300 Hz
Connectors 2 x Speakon NL4 input / link
Physical dimensions mm
Height 452
Width 250
Depth 246
Weight (approx.) 12kg
Warranty 6 years limited



  • >RBN601 pro-ribbon HF driver with exceptional intelligibility and high SPL output
  • All Neodymium drivers for excellent performance-to-weight ratio
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Extended headroom/SPL and protection in combination with SDP modules (with ALC)
  • Asymmetric enclosure provides maximum positioning flexibility and optimum projection
  • Stand mount adapter, 6-position fly track, fixed mounting points (standard), swivel bracket (option)
  • Passive filtering for easy operation and economical powering, while maintaining maximum output
  • Durotect™ scratch-resistant coating






Description

VR12 The VR12 is a 2-way compact multi-purpose loudspeaker, for both portable and permanent applications. Featuring the patented RBN601 pro-ribbon driver, the VR12 is ideal for applications where high output, high quality reinforcement is needed.
The RBN601 is mounted on a “revolvable” 90°x40° wave-guide and projects with “Real-90” horizontal dispersion up to 20.000Hz..

The system includes dedicated filtering, but system equalizing is done remotely (electronically) fully utilizing the individual speaker components’ power capacity. This results in dramatically increased headroom SPL.
The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between VR12 and ALC. The asymmetrical enclosure design provides for very flexible mounting (ceiling, wall) and usage.

Typical applications for the VR12 include main system for theatre, A/V, PA, as well as high power stage monitoring. In applications where extended bass response is required, the VR12 can be combined with a pressure-bass or deep-sub system.

A For full system performance, the VR12 needs to be driven by an ALC controller-amplifier. The SpeakerDriveProcessing ™ circuit of the ALC offers dedicated protection and filtering, with remote system equalizing; By fully utilizing the individual speaker components’ efficiency, this results in a 4dB increased headroom from 800Hz., under dedicated inaudible (power and excursion) protection. The VR12 is available in standard version and “i” installation version, without handle, standmount and tilt-point. Also, both models are available as “m” version, without mirrored baffle.

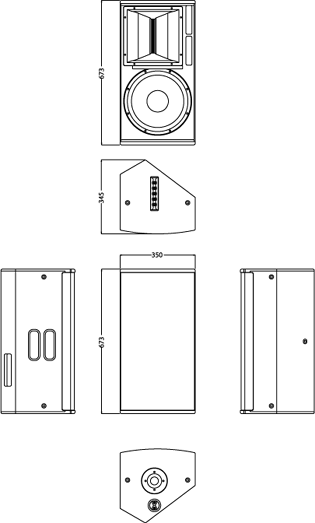

Dimensional Drawing »

Technical Specifications

Frequency Response
+/- 3 dB 60 Hz – 20.000 Hz
+/- 10 dB 50 Hz –
Sensitivity (SPL 1W/M) 98 dB
Sensitivity (nominal) 100 dB (200Hz. – 10kHz.)
Nominal Impedance 8 ohms
Maximum RMS power 450 W
Maximum peak power 1500 W
SPL program/peak (nom.) 127dB / 132dB
Dispersion H x V 90° x 40° (nom.)
or 40° x 90° (nom.)

Physical Specifications

System 2-way, full range
Filtering passive
Drivers LF 1 x AND12.3 12″, Neodymium, vented
Driver HF 1 x RBN601 6″ pro ribbon driver
Cross-over frequency 1100 Hz
Connectors 2 x Speakon NL4 input
Physical dimensions mm
Height 673
Width 350
Depth 345
Weight (approx.) 18kg
Warranty 6 years limited



  • RBN601 pro-ribbon HF driver with exceptional intelligibility and high SPL output
  • All Neodymium drivers for excellent performance-to-weight ratio
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Extended headroom/SPL and protection in combination with SDP modules (with ALC).
  • Asymmetric enclosure provides maximum positioning flexibility and optimum projection
  • Stand mount adapter, 6-position fly track, fixed mounting points (standard), swivel bracket (option)
  • Passive filtering for easy operation and economical powering, while maintaining maximum output
  • Durotect™ scratch-resistant coating






Description

VR12 The VR12/60 is a 2-way compact multi-purpose loudspeaker, for both portable and permanent applications. Featuring the patented RBN601 proribbon driver, the VR12/60 is ideal for applications where high output, high quality reinforcement is needed.

The RBN601 is mounted on a “non-revolvable” 60°x30° wave-guide and projects with “Real-60” horizontal dispersion up to 20.000Hz..

The system includes dedicated filtering, but system equalizing is done remotely (electronically) fully utilizing the individual speaker components’ power capacity. This results in dramatically increased headroom SPL.

The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between VR12/60 and ALC. The asymmetrical enclosure design provides for very flexible mounting (ceiling, wall) and usage.

For full system performance, the VR12/60 needs to be driven by an ALC controller-amplifier. The SpeakerDriveProcessing™ circuit of the ALC offers dedicated protection and filtering, with remote system equalizing; By fully utilizing the individual speaker components’ efficiency, this results in a 5dB increased headroom from 800Hz., under dedicated inaudible (power and excursion) protection.

Dimensional Drawing »

Technical Specifications

Frequency Response
+/- 3 dB 60 Hz – 20.000 Hz
+/- 10 dB 50 Hz –
Sensitivity (SPL 1W/M) 98 dB
Sensitivity (nominal) 101 dB (200Hz. – 10kHz.)
Nominal Impedance 8 ohms
Maximum RMS power 450 W
Maximum peak power 1500 W
SPL program/peak (nom.) 128dB / 133dB
Dispersion H x V 60° x 30° (nom.)

Physical Specifications

System 2-way, full range
Filtering passive
Drivers LF 1 x AND12.3 12″, Neodymium, vented
Driver HF 1 x RBN601 6″ pro ribbon driver
Cross-over frequency 1000 Hz
Connectors 2 x Speakon NL4 input
Physical dimensions mm
Height 673
Width 350
Depth 345
Weight (approx.) 18kg
Warranty 6 years limited
