The L-series is the group of vertical array loudspeaker systems. True line-source systems, to be used as line-array, either in stacked or flown configuration. Applications include both portable and permanent installations.

LR7 Micro 2-way passive line-array
  • RBN401 pro-ribbon HF driver with exceptional intelligibility and throw
  • All Neodymium drivers
  • 74Hz. – 20.000Hz. (+/-3dB)
  • SPL program/peak (nom.) 119dB / 124dB
  • Signal Integrity Sensing™ pre-wired
  • “Morpher” lens in 120°x15° ALrad™ wave-guide
Read more »

LR7/90 Micro 2-way passive line-array
  • RBN401 pro-ribbon HF driver with exceptional intelligibility and throw
  • All Neodymium drivers
  • 74Hz. – 20.000Hz. (+/-3dB)
  • SPL program/peak (nom.) 119dB / 124dB
  • Signal Integrity Sensing™ pre-wired
  • “Morpher” lens in 90°x15° ALrad™ wave-guide
Read more »

LR7B High efficiency LR7 bass system
LR7B
  • Stackable and flyable with LR7 or in separate arrays
  • Single Neodymium 12” driver for excellent performance-to-weight ratio
  • Double-tuned concentric band-pass design with high efficiency
  • 46Hz. – 200Hz (+/- 3dB)
  • SPL program/peak (nom.) 124dB / 129dB
  • Signal Integrity Sensing™ pre-wired
  • Durotect™ scratch-resistant coating
Read more »

LR14 Ultra-compact, 2-way passive line-array
LR14
  • RBN401 pro-ribbon HF driver with exceptional intelligibility and throw
  • All Neodymium drivers
  • 74Hz. – 20.000Hz. (+/-3dB)
  • SPL program/peak (nom.) 123dB / 130dB
  • Signal Integrity Sensing™ pre-wired
  • “Morpher” lens in 120°x15° ALrad™ wave-guides
Read more »

LR14/90 Ultra-compact, 2-way passive line-array
LR14/90
  • RBN401 pro-ribbon HF driver with exceptional intelligibility and throw
  • All Neodymium drivers
  • 74Hz. – 20.000Hz. (+/-3dB)
  • SPL program/peak (nom.) 123dB / 130dB
  • Signal Integrity Sensing™ pre-wired
  • “Morpher” lens in 90°x15° ALrad™ wave-guides
Read more »

LR14B High efficiency LR14 bass system
LR14B
  • Stackable and flyable with LR14 or in separate arrays
  • Double Neodymium 12” drivers for excellent performance-to-weight ratio
  • 46Hz. – 200Hz (+/- 3dB)
  • SPL program/peak (nom.) 130dB / 135dB
  • Signal Integrity Sensing™ pre-wired
Read more »

LR16 Compact, 2-way bi-amped line-array
LR16
  • RBN601 pro-ribbon HF with double 8” tapered woofers
  • 70Hz. – 20.000Hz. (+/-3dB)
  • SPL program/peak (nom.) 126dB / 135dB (HF)
  • Signal Integrity Sensing™ pre-wired
  • “Morpher” lens in 90°x10° HempHorn™ wave-guide
Read more »>

LR16B High efficiency LR16 bass system
LR16B
  • Stackable and flyable with LR16 or in separate arrays
  • Double Neodymium 15” drivers for excellent performance-to-weight ratio
  • 46Hz. – 200Hz (+/- 3dB)
  • SPL program/peak (nom.) 132dB / 137dB
  • Signal Integrity Sensing™ pre-wired
Read more »

  • RBN401 pro-ribbon HF driver with exceptional intelligibility and throw
  • All Neodymium drivers for excellent performance-to-weight ratio
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Maximum attainable gain-before-feedback
  • Durotect™ scratch-resistant coating
  • Extended headroom/SPL and protection in combination with SDP circuit (in ALC)
  • Passive filtering for easy operation and economical powering






Description

LR7  The LR7 is a passive 2-way line-source loudspeaker system. It is a true line-array system, to be used as vertical array, either in stacked or flown configuration, for both portable and permanent installations. Loaded with the RBN401 pro-ribbon driver on a “Morpher” lens (up to 94% frontal radiation!), the system features 120° dispersion with seamless coverage, due to the ribbon’s all-natural cylindrical (Isophasic) wavefront. Its transient response and unusual high peak power handling (800W/200mS) caters for an amazing intelligibility and throw, while offering maximum “gain-before-feedback” up to directly under the array.

The micro-sized design, combined with the weightsaving all Neodymium drivers, makes the system very easy to handle.

The “Morpher” is mounted in the “ALrad™” waveguide, which utilizes the stiffness and heat transfer capabilities of aluminium. Mounted on the RBN, the ALrad™ extends the cooling surface for even further reducing powercompression for increased SPL over time.

The SignalIntegritySensing™ pre-wiring ensures complete cable/connector compensation between the LR7 and ALC. Typical (short to medium throw) applications for the LR7 include as compact main system for theatre, A/V or corporate events where minimal sightline obstruction is required, with exceptional sound reproduction. It is available in 90° and 120° configuration.

In applications where extended bass response is required, the LR7 can be combined with a pressurebass or deep-sub system.

For full system performance, we recommend using the LR7 in combination with an ALC amplifier/controller. Driven by the ALC, the LR7 delivers maximum sound quality with inaudible (power and excursion) protection (SDP circuit). All LR7 system presets are included in the library of the Digital Drive Processor™; with which also array-length and positioning (stacked/flown) can be adjusted.

Dimensional Drawing »

Technical Specifications

Frequency Response
+/- 3 dB 74 Hz – 20.000 Hz
+/- 10 dB 53 Hz –
Sensitivity (SPL 1W/M) 92 dB
Sensitivity (nominal) 96 dB (200Hz. – 10kHz.)
Nominal Impedance 16 ohms
Maximum RMS power 200 W
Maximum peak power 800 W
SPL program/peak (nom.) 119dB / 124dB
Dispersion H x V (array) 120° x depending on array length
Dispersion H x V (single) 120° x 15°

Physical Specifications

System 2-way, full range
Filtering passive
Drivers LF 1 x AND6.5/16 6.5″, vented
Driver HF 1 x RBN401 4″ pro ribbon driver
Cross-over frequency 1000 Hz
Connectors 2 x Speakon NL4 input / link
Physical dimensions mm
Height 173/108
Width 359
Depth 273
Weight (approx.) 8kg
Warranty 6 years limited



  • RBN401 pro-ribbon HF driver with exceptional intelligibility and throw
  • All Neodymium drivers for excellent performance-to-weight ratio
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Maximum attainable gain-before-feedback
  • Durotect™ scratch-resistant coating
  • Extended headroom/SPL and protection in combination with SDP circuit (in ALC)
  • Passive filtering for easy operation and economical powering






Description

LR7 The LR7 is a passive 2-way line-source loudspeaker system. It is a true line-array system, to be used as vertical array, either in stacked or flown configuration, for both portable and permanent installations. Loaded with the RBN401 pro-ribbon driver on a “Morpher” lens (up to 94% frontal radiation!), the system features 120° dispersion with seamless coverage, due to the ribbon’s all-natural cylindrical (Isophasic) wavefront. Its transient response and unusual high peak power handling (800W/200mS) caters for an amazing intelligibility and throw, while offering maximum “gain-before-feedback” up to directly under the array.

The micro-sized design, combined with the weightsaving all Neodymium drivers, makes the system very easy to handle.

The “Morpher” is mounted in the “ALrad™” waveguide, which utilizes the stiffness and heat transfer capabilities of aluminium. Mounted on the RBN, the ALrad™ extends the cooling surface for even further reducing powercompression for increased SPL over time.

The SignalIntegritySensing™ pre-wiring ensures complete cable/connector compensation between the LR7 and ALC. Typical (short to medium throw) applications for the LR7 include as compact main system for theatre, A/V or corporate events where minimal sightline obstruction is required, with exceptional sound reproduction. It is available in 90° and 120° configuration.

In applications where extended bass response is required, the LR7 can be combined with a pressurebass or deep-sub system.

For full system performance, we recommend using the LR7 in combination with an ALC amplifier/controller. Driven by the ALC, the LR7 delivers maximum sound quality with inaudible (power and excursion) protection (SDP circuit). All LR7 system presets are included in the library of the Digital Drive Processor™; with which also array-length and positioning (stacked/flown) can be adjusted.

Dimensional Drawing »

Technical Specifications

Frequency Response
+/- 3 dB 74 Hz – 20.000 Hz
+/- 10 dB 53 Hz –
Sensitivity (SPL 1W/M) 92 dB
Sensitivity (nominal) 96 dB (200Hz. – 10kHz.)
Nominal Impedance 16 ohms
Maximum RMS power 200 W
Maximum peak power 800 W
SPL program/peak (nom.) 119dB / 124dB
Dispersion H x V (array) 90° x depending on array length
Dispersion H x V (single) 90° x 15°

Physical Specifications

System 2-way, full range
Filtering passive
Drivers LF 1 x AND6.5/16 6.5″, vented
Driver HF 1 x RBN401 4″ pro ribbon driver
Cross-over frequency 1000 Hz
Connectors 2 x Speakon NL4 input / link
Physical dimensions mm
Height 173/108
Width 359
Depth 373
Weight (approx.) 8kg
Warranty 6 years limited





Lr7B - Alcons Audio - Loud and Clear

  • Double-tuned concentric band-pass design with high efficiency
  • Neodymium 12” driver for excellent performance-to-weight ratio
  • Ultra-compact and lightweight yet rigid cabinet construction
  • Stackable and flyable with LR7 line-array or in separate arrays
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Durotect™ impact-resistant coating






Description

LR7 and LR7B Flown - Alcons Audio - Loud and Clear The LR7Bass is a double-tuned band-pass bass system, matching the LR7 line-array in both permanent and portable applications. Featuring a single 12” long excursion woofer with Neodymium magnet structure, the LR7B delivers high quality, high output bass response from an ultra-compact and weight efficient package. The concentric bandpass configuration offers LR7-tuned bass response in full-space (flown) and increased efficiency in half-space (stacked) applications

The extended frequency response enables the LR7B to be used as mid-bass reinforcement, full-range bass extension or subwoofer.

The integrated flying system, combines light weight with high WorkingLoadLimit and makes for a quick system set-up in combination with the LR7 line-array module.

The LR7Bass features an integrated top hat, enabling a stand-mounted “top/sub” combination together with 3 units LR7 on the BRK3LR7 bracket (option). The SIS pre-wiring ensures complete cable/connector compensation between the LR7Bass and ALC;

The LR7Bass is to be used in combination with an ALC2 or ALC4 amplifier/controller, then delivering maximum sound quality and output power with dedicated and inaudible (power and excursion!) protection (SDP circuit).

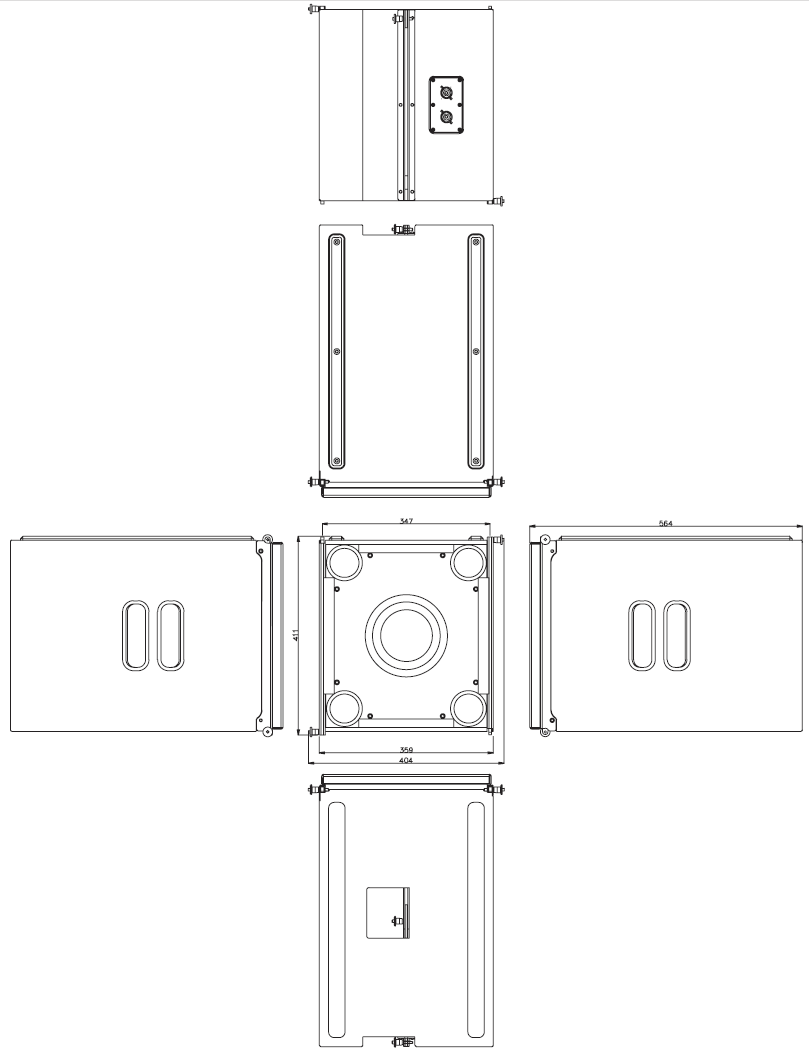

Dimensional Drawing »

Technical Specifications

Frequency Response
+/- 3 dB 46 Hz – 200 Hz
+/- 10 dB 37 Hz –
Sensitivity (SPL 1W/M) 97 dB
Nominal Impedance 8 ohms
Maximum RMS power 500 W
Maximum peak power 1600 W
SPL program/peak (nom.) 124-129dB
Dispersion H x V omni

Physical Specifications

System subwoofer, band-pass
Drivers LF 1 x AW12.3ND 12”, double vented
Cross-over frequency HP 40 Hz recommended
Connectors 2 x Speakon NL4 input / link
Physical dimensions mm
Height 411
Width 359
Depth 564
Weight (approx.) 19kg
Warranty 6 years limited



  • RBN401
    pro-ribbon HF driver with exceptional intelligibility and throw
  • All Neodymium drivers for excellent performance-to-weight ratio
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Maximum attainable “gain-before-feedback”
  • Durotect™ scratch-resistant coating.
  • Extended headroom/SPL and protection in combination with SDP circuit (in ALC)
  • Passive filtering for easy operation and economical powering






Description

LR7 The LR14 is a passive 2-way line-source loudspeaker system. It is a true line-array system, to be used as vertical array, either in stacked or flown configuration, for both portable and permanent installations. Loaded with the RBN401 ribbon driver on a “Morpher” lens (up to 94% frontal radiation!), the system features 120° horizontal dispersion with seamless coverage, due to the ribbon’s all-natural cylindrical (Isophasic) wavefront. Its transient response and unusual high peak power handling (800W/200mS) caters for an amazing intelligibility and throw, while offering maximum gain before feedback up to directly under the array.The ultra-compact size, combined with the weight-saving all Neodymium drivers, makes the system very easy to handle.

The “Morpher” is mounted in the “ALrad™” waveguide, which utilizes the stiffness and heat transfer capabilities of aluminium. Mounted on the RBN, the ALrad™ extens the cooling surface for even further reducing power-compression for increased SPL over time.

The SignalIntegritySensing™ pre-wiring ensures complete cable/connector compensation between the LR14 and ALC. Typical (short to medium throw) applications for the LR14 include as compact main system for theatre and A/V or as under-fill in a LR16 system. It is available in 90° and 120° configuration.

The system includes dedicated filtering, but system equalizing is done remotely (electronically) fully utilizing the individual speaker components’ power capacity. This results in increased headroom SPL.

In applications where extended bass response is required, the LR14 can be combined with a pressurebass (LR14B) or deep-sub system (BF181), or both.

For full system performance, the LR14 needs to be driven by an ALC controller-amplifier. Driven by the ALC, the LR14 delivers maximum sound quality with inaudible (power and excursion) protection (SDP circuit).

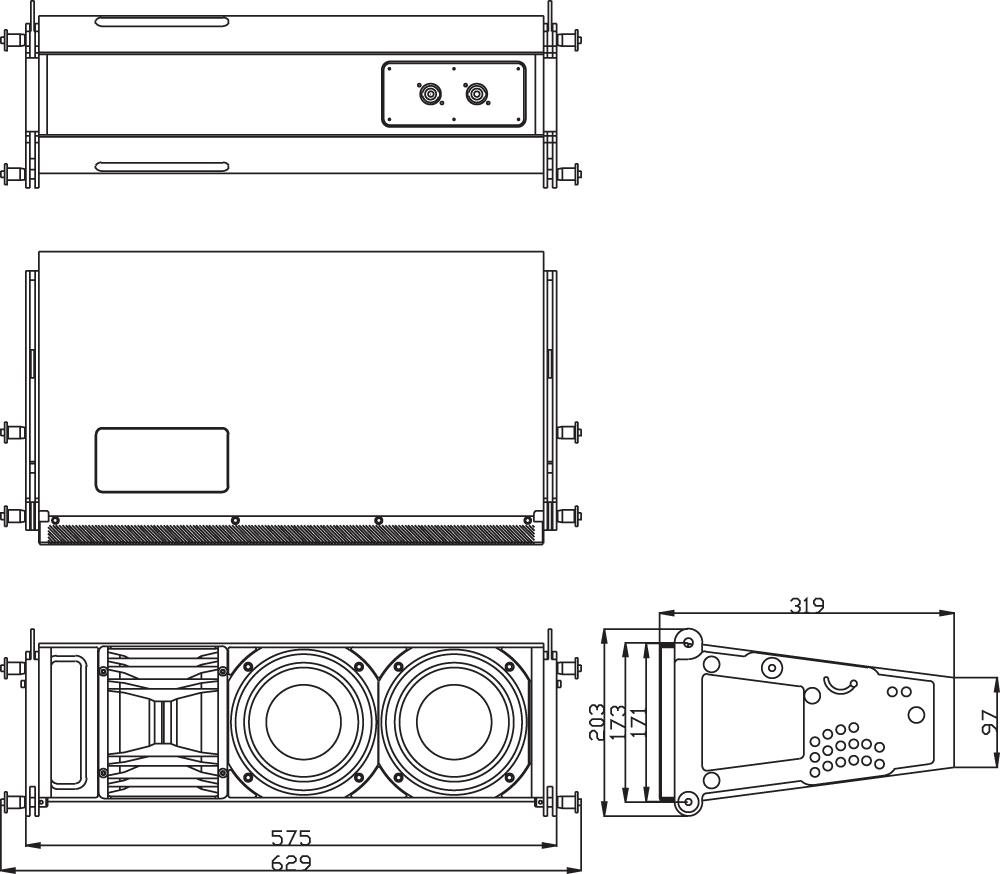

Dimensional Drawing »

Technical Specifications

Frequency Response
+/- 3 dB 74 Hz – 20.000 Hz
+/- 10 dB 53 Hz –
Sensitivity (SPL 1W/M) 95 dB
Sensitivity (nominal) 97 dB (200Hz. – 10kHz.)
Nominal Impedance 8 ohms
Maximum RMS power 400 W
Maximum peak power 1000 W
SPL program/peak (nom.) 123/130dB
Dispersion H x V (array) 120° x depending on array length
Dispersion H x V (single) 120° x 15°

Physical Specifications

System 2-way, full range
Filtering passive
Drivers LF 2 x AND6.5/16 6.5″, vented
Driver HF 1 x RBN401 4″ pro ribbon driver
Cross-over frequency 1000 Hz
Connectors 2 x Speakon NL4 input / link
Physical dimensions mm
Height 171/97
Width 575
Depth 319
Weight (approx.) 15kg
Warranty 6 years limited



  • RBN401
    pro-ribbon HF driver with exceptional intelligibility and throw
  • All Neodymium drivers for excellent performance-to-weight ratio
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Maximum attainable “gain-before-feedback”
  • Durotect™ scratch-resistant coating.
  • Extended headroom/SPL and protection in combination with SDP circuit (in ALC)
  • Passive filtering for easy operation and economical powering






Description

LR7 The LR14 is a passive 2-way line-source loudspeaker system. It is a true line-array system, to be used as vertical array, either in stacked or flown configuration, for both portable and permanent installations. Loaded with the RBN401 ribbon driver on a “Morpher” lens (up to 94% frontal radiation!), the system features 90° horizontal dispersion with seamless coverage, due to the ribbon’s all-natural cylindrical (Isophasic) wavefront. Its transient response and unusual high peak power handling (800W/200mS) caters for an amazing intelligibility and throw, while offering maximum gain before feedback up to directly under the array.The ultra-compact size, combined with the weight-saving all Neodymium drivers, makes the system very easy to handle.

The “Morpher” is mounted in the “ALrad™” waveguide, which utilizes the stiffness and heat transfer capabilities of aluminium. Mounted on the RBN, the ALrad™ extens the cooling surface for even further reducing power-compression for increased SPL over time.

The SignalIntegritySensing™ pre-wiring ensures complete cable/connector compensation between the LR14 and ALC. Typical (short to medium throw) applications for the LR14 include as compact main system for theatre and A/V or as under-fill in a LR16 system. It is available in 90° and 120° configuration.

The system includes dedicated filtering, but system equalizing is done remotely (electronically) fully utilizing the individual speaker components’ power capacity. This results in increased headroom SPL.

In applications where extended bass response is required, the LR14 can be combined with a pressurebass (LR14B) or deep-sub system (BF181), or both.

For full system performance, the LR14 needs to be driven by an ALC controller-amplifier. Driven by the ALC, the LR14 delivers maximum sound quality with inaudible (power and excursion) protection (SDP circuit).

Dimensional Drawing »

Technical Specifications

Frequency Response
+/- 3 dB 74 Hz – 20.000 Hz
+/- 10 dB 53 Hz –
Sensitivity (SPL 1W/M) 95 dB
Sensitivity (nominal) 97 dB (200Hz. – 10kHz.)
Nominal Impedance 8 ohms
Maximum RMS power 400 W
Maximum peak power 1000 W
SPL program/peak (nom.) 123/130dB
Dispersion H x V (array) 90° x depending on array length
Dispersion H x V (single) 90° x 15°

Physical Specifications

System 2-way, full range
Filtering passive
Drivers LF 2 x AND6.5/16 6.5″, vented
Driver HF 1 x RBN401 4″ pro ribbon driver
Cross-over frequency 1000 Hz
Connectors 2 x Speakon NL4 input / link
Physical dimensions mm
Height 171/97
Width 575
Depth 319
Weight (approx.) 15kg
Warranty 6 years limited





Lr7B - Alcons Audio - Loud and Clear

  • Double-tuned band-pass design with high efficiency
  • Neodymium 12” drivers for excellent performance-to-weight ratio
  • 12mm Birch with clever bracing brings lightweight yet rigid cabinet construction
  • Stackable and flyable with LR14 or in separate arrays
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Dedicated protection in combination with SDP modules (with ALC)
  • Durotect™ scratch-resistant coating






Description

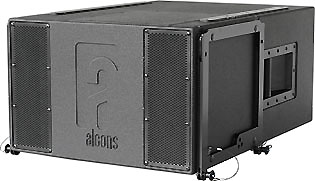

Alcons Audio - Loud and Clear The LR14Bass is a double-tuned band-pass bass system, for both permanent and portable applications. Featuring double 12” long excursion woofers with Neodymium magnet structures, the LR14Bass delivers high quality, high output bass response from a very compact and weight efficient package. The special band-pass configuration offers LR14- matched bass response in full-space (flown) and increased efficiency in half-space (stacked) applications. The easy and accurate flying system, makes the system quick to set-up in combination with the LR14 line-array module.The SIS pre-wiring ensures complete cable/connector compensation between the LR14Bass and ALC. The LR14Bass is designed as high-efficient bass extension of the LR14, used in multiples depending on the array-length and low frequency requirements.

The LR14B features an integrated top hat, enabling a stand-mounted “top/sub” combination together with 3 units LR14 on the BRK-3LR14 bracket (option).

For full system performance, we recommend using the LR14Bass in combination with an ALC2 or ALC4 amplifier/controller. Driven by the ALC, the LR14Bass delivers maximum sound quality and output power with dedicated and inaudible (power and excursion!) protection (SDP circuit).

.

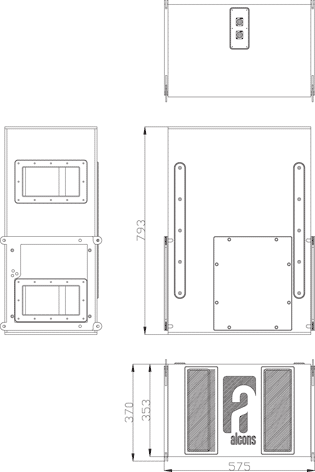

Dimensional Drawing »

Technical Specifications

Frequency Response
+/- 3 dB 46 Hz – 200 Hz
+/- 10 dB 37 Hz –
Sensitivity (SPL 1W/M) 100 dB
Nominal Impedance 4 ohms
Maximum RMS power 1000 W
Maximum peak power 3200 W
SPL program/peak (nom.) 130/135dB
Dispersion H x V omni

Physical Specifications

System subwoofer, band-pass
Drivers LF 2 x AW12.3ND 12”, double vented
Cross-over frequency HP 40 Hz recommended
Connectors 2 x Speakon NL4 input / link
Physical dimensions mm
Height 370
Width 575
Depth 793
Weight (approx.) 36.1kg
Warranty 6 years limited



  • RBN601 ribbon HF driver with exceptional intelligibility and throw
  • Special mid-tapering for smooth off-axis response (no lobes)
  • Maximum attainable “gain-before-feedback”
  • Extended bass response, usable down to 51Hz.
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Revolvable horn provides for versatile multi-application system: Vertical line-array or horizontal stand-alone
  • Durotect™ scratch-resistant coating






Description

LR16 The LR16 is an active 2-way line-source loudspeaker system. It is a true line-array system, to be used as vertical array, either in stacked or flown configuration, for both portable and permanent installations. Loaded with the RBN601 ribbon driver on a “morpher” wave-guide (92% frontal radiation), the system features real-90 dispersion with seamless coverage, due to the ribbon’s all-natural cylindrical (Isophasic) wavefront. Its transient response caters for an amazing intelligibility and throw.
The compact size, combined with the easy and accurate flying system, makes the system quick to set-up.

Special attention in the design was paid to creating a versatile (and therefore economic) system; The system can be scaled from (part of) a large-scale long-throw arena system to an ultra-compact single cabinet system, with its revolvable wave-guide.
Furthermore, its lowest usable frequency is 51Hz., making the system real full-range in most applications.

The SIS pre-wiring ensures complete cable/connector compensation between the LR16 and ALC. Typical applications for the LR16 include main system for theatre, A/V, PA or front-, in- and side-fill system.

In applications where extended bass response is required, the LR16 can be combined with the LR16B bass module or a BF362 deep-sub system.

For full system performance, we recommend using the LR16 in combination with an ALC 2 (or ALC 4) amplifier/controller. Driven by the ALC, the LR16 delivers maximum sound quality with inaudible (power and excursion) protection (SDP circuit).

Dimensional Drawing »

Technical Specifications

Frequency Response
+/- 3 dB 70 Hz – 20.000 Hz
+/- 10 dB 51 Hz –
Sensitivity (SPL 1W/M) LF 97 dB
HF 105 dB
Sensitivity (nominal) LF 99 dB, HF 105 dB
(200Hz – 10kHz.)
Nominal Impedance LF 8 ohms
HF 8 ohms
Maximum RMS power LF 560W / HF 70W
Maximum peak power LF 1600 W
HF 1000 W
SPL program/peak (nom.) LF 126/131dB
HF 123/135 dB
Dispersion H x V (array) 90° x depending on array length and shape
Dispersion H x V (single) 90° x 40° @ 4 kHz
vertical use, revolved horn

Physical Specifications

System 2-way, full range
Filtering active (passive optional
in vertical use)
Drivers LF 2 x AMB8 8″, vented
Driver HF 1 x RBN601 6″ pro ribbon driver
Cross-over frequency 1200 Hz
Connectors 2 x Speakon NL8 input / link
Physical dimensions mm
Height 228/167
Width 774
Depth 434
Weight (approx.) 29kg
Warranty 6 years limited





LR16B - Alcons Audio - Loud and Clear

    li>Double-tuned band-pass design with high efficiency

  • Neodymium 15” drivers for excellent performance-to-weight ratio
  • 15mm Birch with clever bracing brings lightweight yet rigid cabinet construction
  • High WLL flying system
  • Stackable and flyable with LR16 or in separate arrays
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Dedicated protection in combination with SDP modules (with LC)
  • Durotect™ scratch-resistant coating






Description

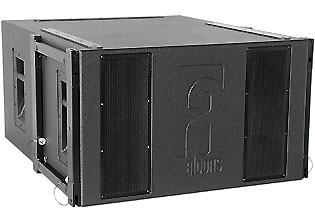

Alcons Audio - Loud and Clear The LR16Bass is a double-tuned band-pass bass system, for both permanent and portable applications. Featuring double 15” long excursion woofers with Neodymium magnet structures, the LR16Bass delivers high quality, high output bass response from a compact and weight efficient package. The special band-pass configuration offers LR16-matched bass response in full-space (flown) and increased efficiency in half-space (stacked) applications. The easy and accurate flying system, makes the system quick to set-up in combination with the LR16 line-array module.

The SIS pre-wiring ensures complete cable/connector compensation between the LR16Bass and ALC. The LR16Bass is designed as high-efficient bass extension of the LR16, used in multiples depending on the array-length and low frequency requirements.

For full system performance, we recommend using the LR16Bass in combination with an ALC2 or ALC4 amplifier/controller. Driven by the ALC, the LR16Bass delivers maximum sound quality and output power with dedicated and inaudible (power and excursion!) protection (SDP circuit).

.

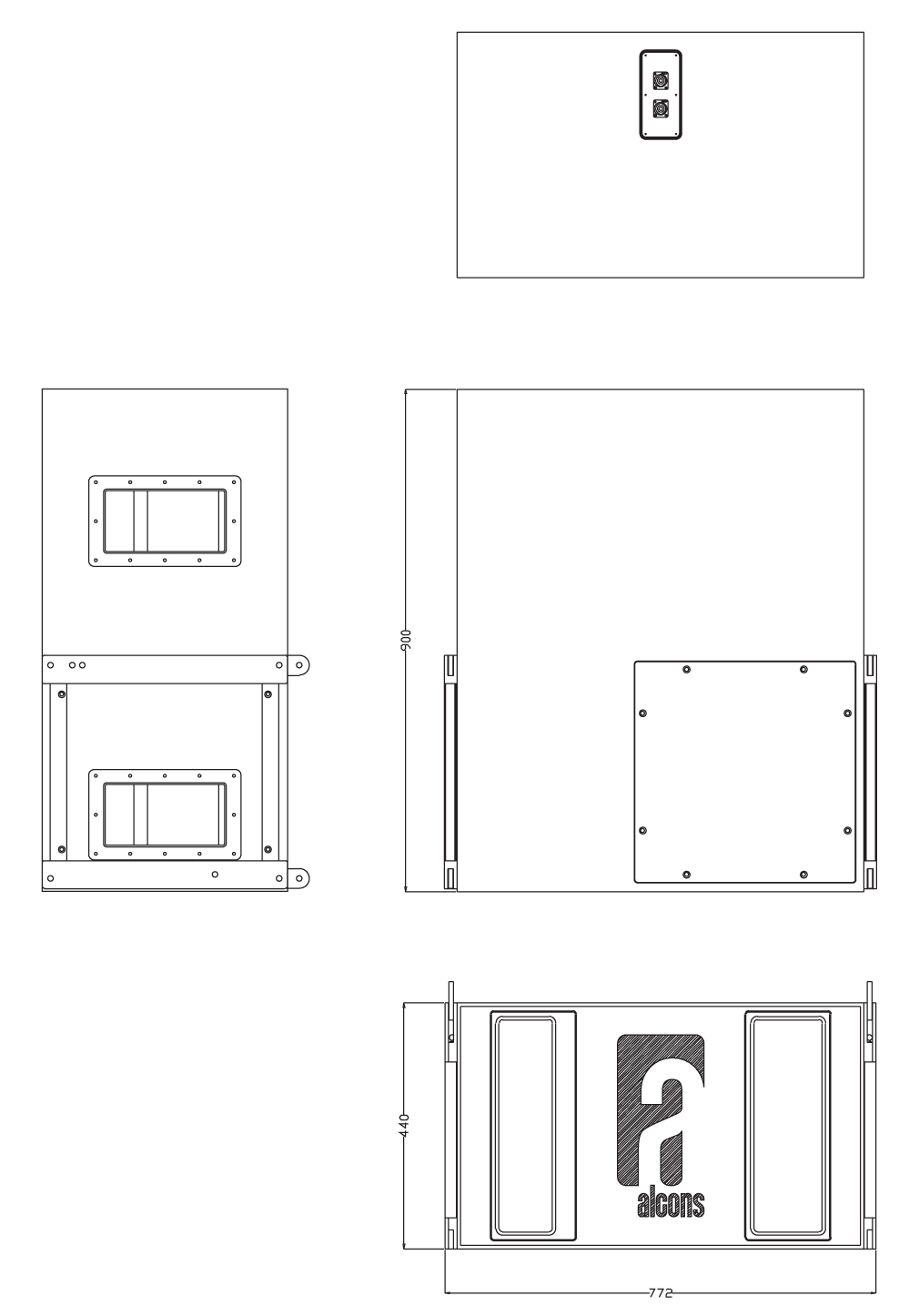

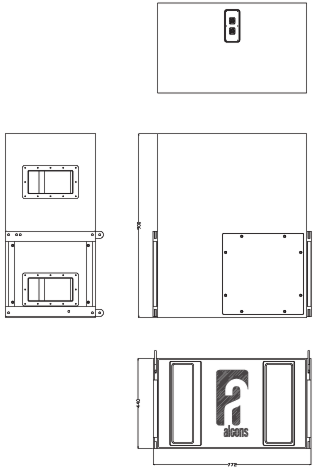

Dimensional Drawing »

Technical Specifications

Frequency Response
+/- 3 dB 46 Hz – 200 Hz
+/- 10 dB 37 Hz –
Sensitivity (SPL 1W/M) 102 dB
Nominal Impedance 4 ohms
Maximum RMS power 1000 W
Maximum peak power 3200 W
SPL program/peak (nom.) 132/137dB
Dispersion H x V omni

Physical Specifications

System subwoofer, band-pass
Drivers LF 2 x AW15.3ND 12”, double vented
Cross-over frequency HP 40 Hz recommended
Connectors 2 x Speakon NL4 input / link
Physical dimensions mm
Height 440
Width 772
Depth 900
Weight (approx.) 53.3kg
Warranty 6 years limited
