- Long-excursion, vented-spider 18” in deep-tuned cabinet
- 15mm Birch with clever bracing brings lightweight yet rigid cabinet construction
- Double baffle board with flush mount transducer
- SIS pre-wired for very high damping and further reduced distortion (with ALC)
- Dedicated protection in combination with SDP modules (with ALC)
- Durotect™ scratch-resistant coating
- Stand mount adapter
Description
 |

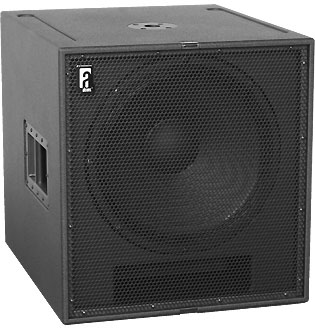

The BF181 is a front-loaded subwoofer system, for both permanent and portable applications. Featuring a single 18” long-excursion high-power woofer (with vented double-spider frame), the BF181 delivers high quality, tight and accurate sub-bass response.
The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between the BF181 and ALC. Typical applications for the BF181 include sub-bass extension of main sound systems, used in multiples depending on the application and low frequency requirements. The deep-tuning makes the BF181 an ideal highpower HiFi-reproduction system for classical, acoustical and jazz music, in combination with a VR8 or VR12 (on standmount). The 4 ohms nominal impedance makes for a good amplifier loading, when used in singles. For full system performance, the BF181 needs to be driven by an ALC controller-amplifier. Driven by the ALC, the BF181 delivers maximum sound quality and output power with dedicated and inaudible (power and excursion!) protection (SDP circuit). |
Technical Specifications
| Frequency Response | |
| +/- 3 dB | 33 Hz – 200 Hz |
| +/- 10 dB | 27 Hz – |
| Sensitivity (SPL 1W/M) | 98 dB |
| Nominal Impedance | 4 ohms |
| Maximum RMS power | 1000 W |
| Maximum peak power | 7000 W |
| SPL program/peak (nom.) | 128dB / 136dB |
| Dispersion H x V (array) | omni |
Physical Specifications
| System | subwoofer, front loaded |
| Drivers LF | 1 x AW18.4 18″ vented |
| Cross-over frequency | 36 Hz recommended |
| Connectors | 2 x Speakon NL4 input / link |

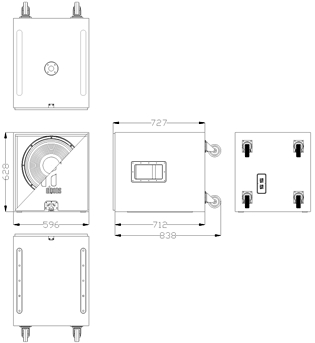

| Physical dimensions | mm |
| Height | 628 |
| Width | 596 |
| Depth | 712 |
| Weight (approx.) BR181 | 56.2kg |
| Weight (approx.) BF181i | 48.6kg |
| Warranty | 6 years limited |
