• RBN601 pro-ribbon HF driver with exceptional intelligibility and high SPL output
  • All Neodymium drivers for excellent performance-to-weight ratio
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Extended headroom/SPL and protection in combination with SDP modules (with ALC).
  • Asymmetric enclosure provides maximum positioning flexibility and optimum projection
  • Stand mount adapter, 6-position fly track, fixed mounting points (standard), swivel bracket (option)
  • Passive filtering for easy operation and economical powering, while maintaining maximum output
  • Durotect™ scratch-resistant coating






Description

VR12 The VR12/60 is a 2-way compact multi-purpose loudspeaker, for both portable and permanent applications. Featuring the patented RBN601 proribbon driver, the VR12/60 is ideal for applications where high output, high quality reinforcement is needed.

The RBN601 is mounted on a “non-revolvable” 60°x30° wave-guide and projects with “Real-60” horizontal dispersion up to 20.000Hz..

The system includes dedicated filtering, but system equalizing is done remotely (electronically) fully utilizing the individual speaker components’ power capacity. This results in dramatically increased headroom SPL.

The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between VR12/60 and ALC. The asymmetrical enclosure design provides for very flexible mounting (ceiling, wall) and usage.

For full system performance, the VR12/60 needs to be driven by an ALC controller-amplifier. The SpeakerDriveProcessing™ circuit of the ALC offers dedicated protection and filtering, with remote system equalizing; By fully utilizing the individual speaker components’ efficiency, this results in a 5dB increased headroom from 800Hz., under dedicated inaudible (power and excursion) protection.

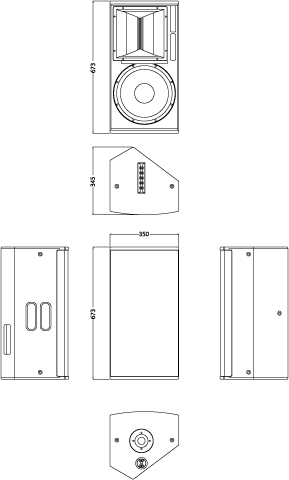

Dimensional Drawing »

Technical Specifications

Frequency Response
+/- 3 dB 60 Hz – 20.000 Hz
+/- 10 dB 50 Hz –
Sensitivity (SPL 1W/M) 98 dB
Sensitivity (nominal) 101 dB (200Hz. – 10kHz.)
Nominal Impedance 8 ohms
Maximum RMS power 450 W
Maximum peak power 1500 W
SPL program/peak (nom.) 128dB / 133dB
Dispersion H x V 60° x 30° (nom.)

Physical Specifications

System 2-way, full range
Filtering passive
Drivers LF 1 x AND12.3 12″, Neodymium, vented
Driver HF 1 x RBN601 6″ pro ribbon driver
Cross-over frequency 1000 Hz
Connectors 2 x Speakon NL4 input
Physical dimensions mm
Height 673
Width 350
Depth 345
Weight (approx.) 18kg
Warranty 6 years limited
